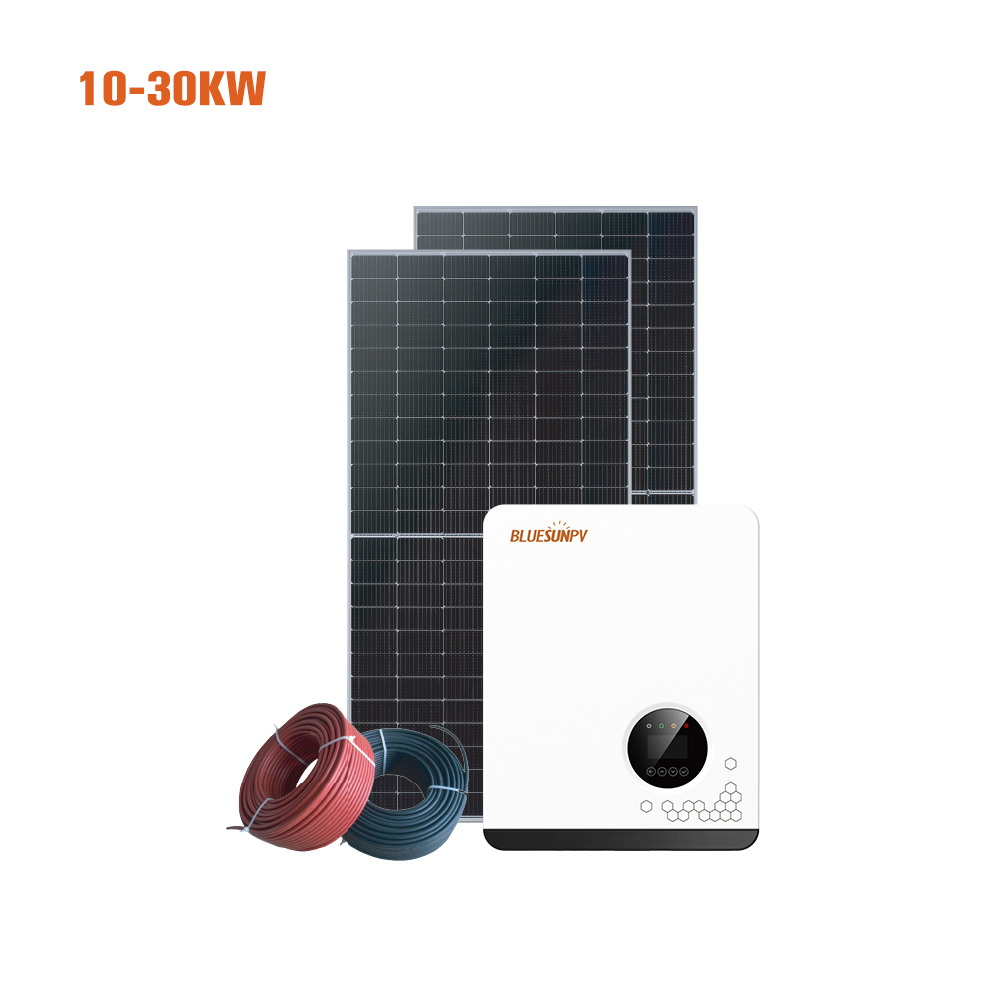

Households Application 10kw 20kw 30kw Complete On Grid Solar System
Households Application 10kw 20kw 30kw Complete On Grid Solar System - Image 2
Households Application 10kw 20kw 30kw Complete On Grid Solar System - Image 3
Households Application 10kw 20kw 30kw Complete On Grid Solar System - Image 4

The Households Application 10kW 20kW 30kW 40kW Complete On-Grid Solar System is an all-in-one solution designed for efficient and easy solar energy integration. This system includes high-quality solar

Add to wishlist
Category:

The Households Application 10kW 20kW 30kW 40kW Complete On-Grid Solar System is an all-in-one solution designed for efficient and easy solar energy integration. This system includes high-quality solar panels, grid-connected photovoltaic inverters, and durable photovoltaic mounting brackets, ensuring reliable performance and versatility.

Model No. : BSM10-30K-ON
Max.Power: 30KW
Certificate: CE/TUV
Warranty: 25 years
Monitoring: WiFi
Mounting Structure: Roof/Ground Customized

Products Description

The Households Application 10kW 20kW 30kW Complete On-Grid Solar System is an all-in-one solution designed for efficient and easy solar energy integration. This system includes high-quality solar panels, grid-connected photovoltaic inverters, and durable photovoltaic mounting brackets, ensuring reliable performance and versatility.

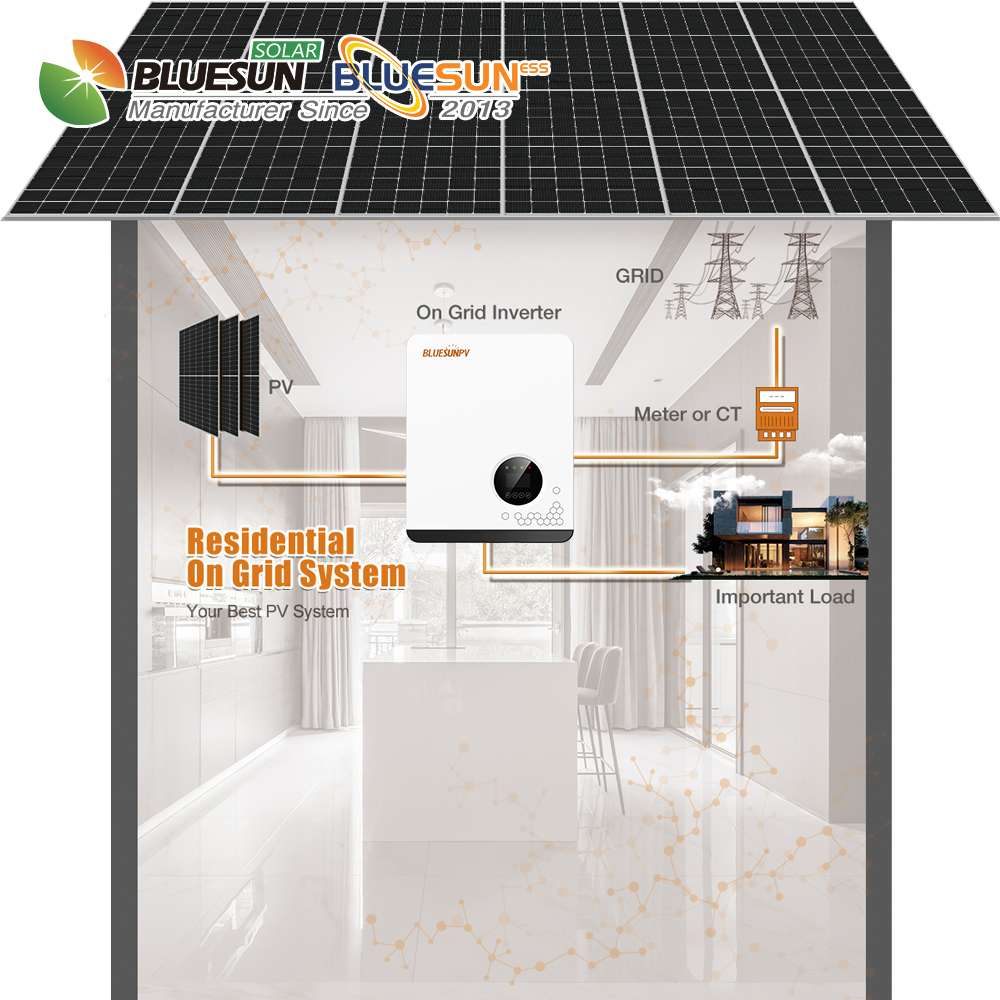

With its simple structural design, the system can be seamlessly installed on rooftops or ground surfaces, making it suitable for various household applications. To simplify the installation process, we provide a detailed circuit diagram of the system and a comprehensive photovoltaic mounting bracket guide. This ensures hassle-free setup and optimal performance for your energy needs.

System Configuration

Model BSM10KW-ON BSM15KW-ON BSM30KW-ON
Solar Panel 570W 20pcs 30pcs 60pcs
Grid-tied Inverter BSM10K-B BSM15K-B BSM30K-B
Wi-Fi Module Build-In Build-In Build-In
Mounting System 1 Set 1 Set 1 Set
DC Cable 4mm² 100M*4MM² 200M*4MM² 300M*4MM²
PV Connector 15 Pairs 20 Pairs 20 Pairs
AC/DC Breaker Opt Opt Opt
PV Tools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt)

System Components

Solar Panel Choose On Grid Solar Inverter PV Combiner Box PV Mounting System

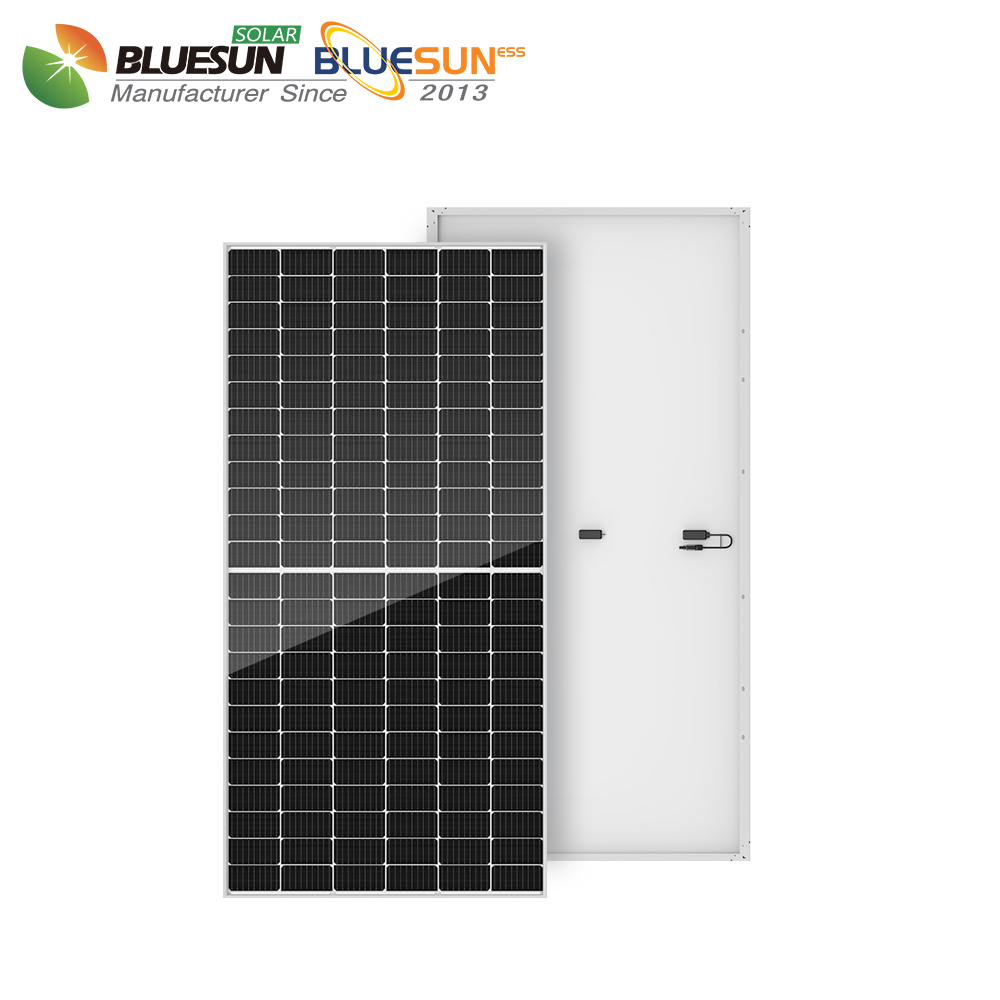

Bluesun PERC Mono 570W Solar Panel
♦Utilizing MBB half-cell technology
♦Maximum Power Voltage: 42.51V
♦Maximum Power Current: 13.41A
♦Open Circuit Voltage: 50.2V
♦Short Circuit Current: 14.34A
♦Dimensions: 2278×1134×35mm
♦Weight: 28.6kg

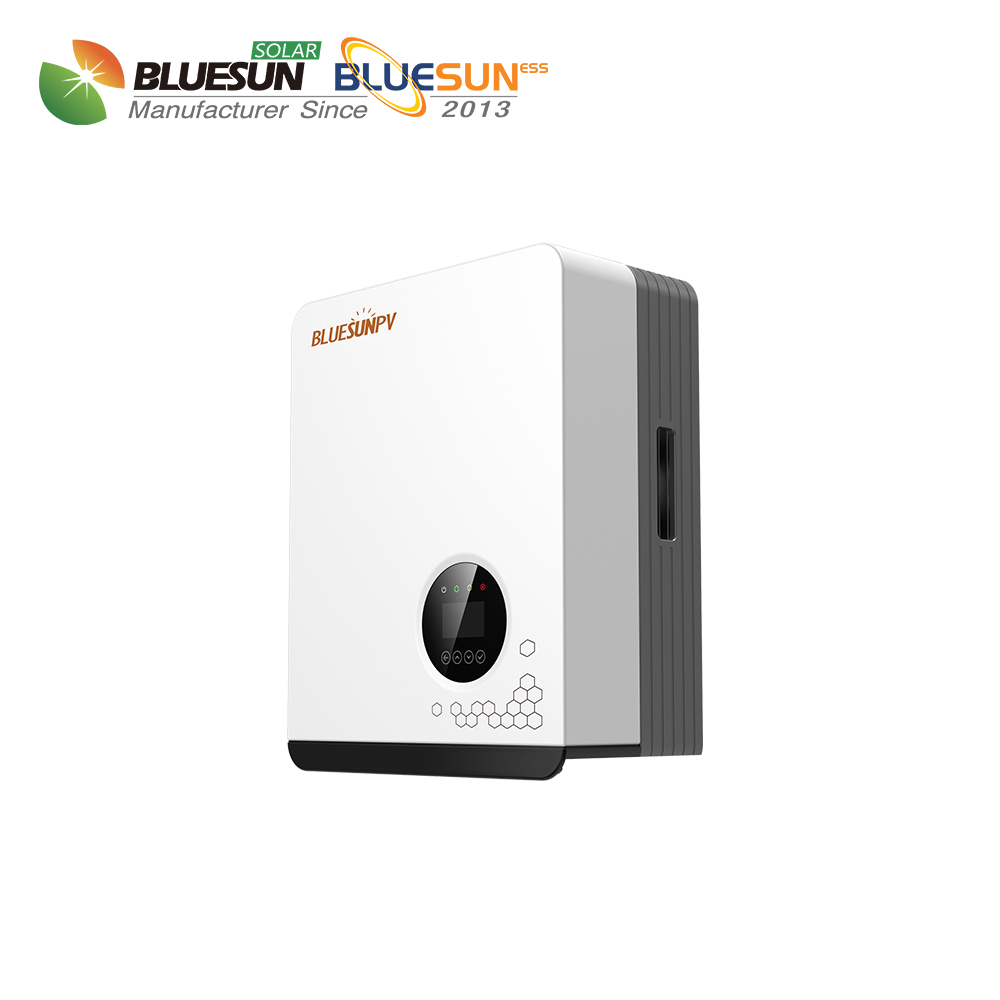

BSM10-30K-B On Grid Inverter

♦High Efficiency: 99% max efficiency, dual MPPT, and compatibility with 182/210 PV  panels.
♦Reliable: Natural/smart cooling, voltage protection, and built-in lightning   protection.
♦User-Friendly: Operates at 100% rated power under 45℃ with convenient app support.
  PV Combiner Box
♦Cross Section: 4mm2, 6mm2 Optional
♦Rated Voltage: 600VDC/1000VDC(TUV)
♦URated Current: 55A,70A
♦Colors: Black For STD, Red Optional.
PV Mounting System
 ♦Residential Roof(Pitched Roof)
 ♦Commercial Roof(Flat roof&workshop roof)
 ♦Ground Solar Mounting system
 ♦Vertical wall solar mounting system
 ♦All aluminum structure solar mounting system
 ♦Car parking solar mounting system
